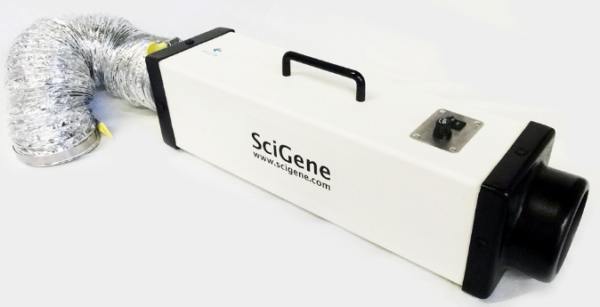

NoZone® Ozone Scrubber

Maintains Low Ozone Levels Within a Sealed Workspace

The NoZone® Ozone Scrubber operates by forcing room air through a bed of proprietary catalyst that converts ozone (O3) into oxygen (O2) and carbon dioxide (CO2). Any dust or other particles in the ozone depleted air that emerge from the catalyst cartridge is then removed by a HEPA filter before exiting the unit. Under normal atmospheric conditions of temperature, humidity and ozone, the catalyst used in the scrubber need not be regenerated or replaced during the lifetime of the unit.

Using the NoZone Ozone Scrubber

The NoZone Ozone Scrubber balances flow rate and ozone destruction efficiency to maintain ozone levels below 5 parts per billion (ppb) within a NoZone Enclosure or other similarly sealed volume of 20 cubic feet or less. It should be set up to operate externally to the enclosure with ozone depleted, filtered air being continuously pumped from the scrubber into one side of the space with an exit port opposite. The scrubber comes equipped with ducting and clamps to ensure a tight seal with the air flow vent on the enclosure. Ozone levels within the enclosure should be periodically checked with a sensitive (ppb) ozone monitor. SciGene offers a high performance ozone analyzer for short-term rental (Cat. #1090-40-1) for this purpose.

Quickly Achieve and Maintain Low Ozone Levels

The NoZone Ozone Scrubber quickly achieves and maintains low (< 5 ppb) ozone levels within a NoZone Enclosure, even during periods of high (75 to 100 ppb) laboratory ozone. The ozone-safe environment created by the scrubber can be used for operating microarray processing and scanning equipment and for storing arrays.

Ordering Information

INSTRUMENTS
NoZone Ozone Scrubber, 115/230V. Includes ducting and clamps. Specify US, UK or Euro power cord.1090-20-32.322,00 €
ENCLOSURES
NoZone WS Enclosure. Fits the Little Dipper Processor or Hybex System. Features a hand accessible opening for working inside the enclosure.1090-13-0Please contact us
WORKSPACES
NoZone WS Workspace, 115/230V. Includes cat.#1090-13-0 enclosure and cat. #1090-20-3 scrubber. Fits the Little Dipper Processor or Hybex System. Features a hand accessible opening for working inside the enclosure. Specify US, UK or Euro power cord.1090-13-3Please contact us
ACCESSORIES
Ozon Monitoring System AQ200/1501090-9998Please contact us

Technical Specification

Flow Rate 25 to 30 cubic feet (700 - 800 liter) per minute
